Joule Evacuated Tube Solar Thermal System

Why choose our tube solar thermal collectors?

Joule evacuated tube solar collectors offer a highly effective way to harness the sun’s energy to provide hot water for your home. By installing these solar thermal collectors on your property, you stand to reduce your energy bills and cut your carbon footprint.

Joule evacuated tube collectors work by absorbing heat from the sun to produce hot water, which is then stored in a highly insulated cylinder. The collectors can meet a significant proportion of your household’s hot water needs, and they can be supplemented by other heating systems to ensure you have access to all the hot water you need year-round. Their peak output occurs during the summer months, but they work throughout the seasons and produce hot water even in overcast conditions.

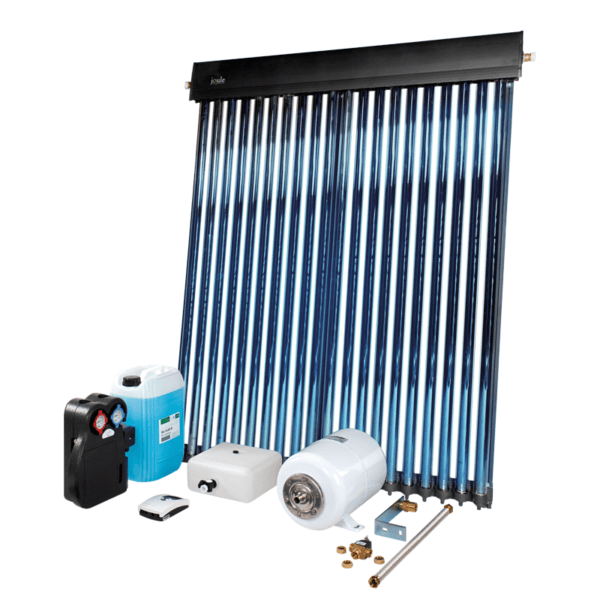

Standard Kit Components

  2m UK Pack Contents 2m IE Pack Contents
Item Code Description 20

Tubes

30

Tubes

40

Tubes

20

Tubes

30

Tubes

40

Tubes

SZ-I-000000020

20 Tube Manifold Tubes

1

2

1

2

SZ-I-000000030

30 Tube Manifold Tubes

1

1

SKN-C-000000CS2

Solar Controller Deltasol CS/2

1

1

1

1

1

1

SVE-0000000024

Solar Expansion Vessel 24Ltr

1

1

1

1

1

1

SVE-0000000035

Solar Expansion Vessel 35Ltr

SVE-0000000050

Solar Expansion Vessel 50Ltr

SVS-0000000000

Solar Expansion Vessel Connect

1

1

1

SZ-L-0D-0ERP-5

Solar Pump Station Dual ERP 5m

1

1

1

1

1

1

SKU-0000000020

20L Pre-Mixed Solar Fluid

1

1

1

1

1

2

SVB-000000000P

Solar Discharge- Plastic

1

1

1

OZM-0000.75NRV

Thermo Mixing Valve 3/4” NRV

1

1

1

OZM-00000.75HP*

Thermo Mixing Valve 3/4” HP *

1

1

1

SZ-G-0G-000004

Solar Pipe Entry Gasket Set 4”

1

1

1

SZ-G-0G-000000

Solar Pipe Entry Flashing

1

1

1

SM-J-00000000

Acapella Manifold Joiner

1

1

Key Benefits

Acapella Evacuated Tube Solar Thermal System high-performance collector is one of the most efficient models on the market and is particularly recommended for use in restricted spaces. The absorber angle can be adjusted by 15°- 75° to deliver an exceptionally high yield, even when the sun is in less favorable positions.

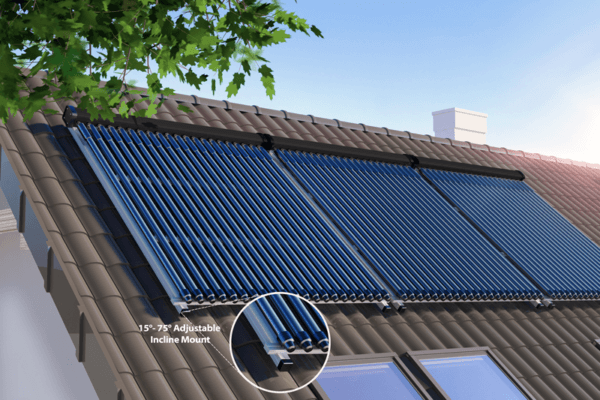

The collector can be installed and used in any position and is designed for use on detached houses and apartment buildings. It features automatic temperature-dependent shutdown, which is activated if heat draw-off stagnates for a long period whilst there is a high level of insulation.

Standard Kit - Solar Pipe

UK PACK COMP IE PACK COMP
Code Description 1 2 3 1 2 3

DN16 Solar Tail Pack Standard System

SKT-00000000

DN16 Solar SS Insulated Tail 0.75m

1 1 1

10m DN16 Solar Pipe Pack Standard System

SPD-16-10-0000

DN16 10m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1

15m DN16 Solar Pipe Pack Standard System

SPD-16-15-0000

DN16 15m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1

25m DN16 Solar Pipe Pack Standard System

SPD-16-25-0000

DN16 25m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1

Product Data

TECHNICAL DATA 10 TUBE 20 TUBE 30 TUBE
Certification Number INT ST21013/2 INT ST21013/3 INT ST21013/5
Gross Area 1.72m² 3.38m² 4.901m²
Aperature area 0.93m² 1.86m² 2.791m²
Absorber Area 0.8m² 1.61m² 2.411m²
Length of Tube 1.8m 1.8m 1.8m
Dist. Between Tubes/Panels 0.078m 0.078m 0.078m
Weight 52kg 85kg 106kg
Max Operating Pressure 6bar 6bar 6bar
Recommended Operating Pressure 2-3bar 2-3bar 2-3bar
Recommended Flow Rate 0.5l/min/m² 0.5l/min/m² 0.5l/min/m²
Fluid Volume in Collector 0.81l 1.65l 2.3l
Rated Heat Output 0.60kW 1.21kW 1.81kW
Inlet Outlet Dimensions 3 ¼ bracket male 3 ¼ bracket male 3 ¼ bracket male
Stagnation Temperature 200.3°C 200.3°C 200.3°C
Insulation Material Mineral Wool + Polyurethane Mineral Wool + Polyurethane Mineral Wool + Polyurethane



Setting Out The Roof

Code Dimensions
A 300mm
B 300mm
C 2000mm
D (20 Tube) 1680mm
E (30 Tube) 2420mm
F (40 Tube) 3380mm

Connecting Solar Pipe To The Panels

If you choose to use solar pipe either in full lengths or as tails the connections must be made to the panels prior to fitting the flashing kit.

The panels are terminated in 3/4” BSP flat face male nipple as supplied as part of the kit. Following the diagram below single fitting should be tightened to the flat face of the elbow connected to the panel.
