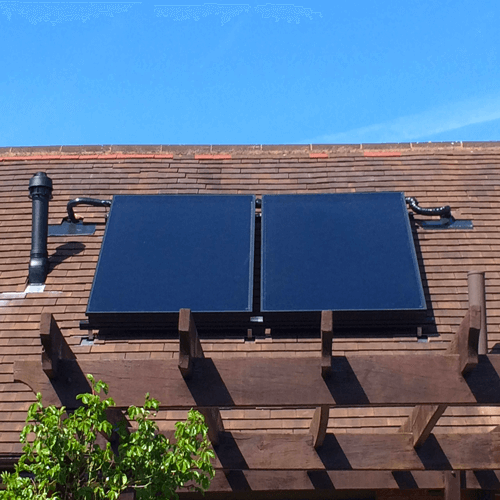

On Roof 2m & 2.5m Solar Thermal System

Why choose our on roof solar system?

The sleek Joule Navitas On-Roof solar system is designed and manufactures to work in Northern European climates. The collector’s black finish makes it an attractive addition to any roof.

Joule Navitas On-Roof solar systems have been tested up to four times the requirements of EN12975: 1-2. The high efficiency collectors are further tested to determine their maximum impact force resistance levels and the maximum positive and negative loading force that the collectors can resist.

Standard Kit Components

2m & 2.5m On Roof Solar List

2m UK Pack Contents 2.5M UK Pack Contents
2m IE Pack Contents 2.5m IE Pack Contents
Item Code Description 1

Panel

2

Panel

3

Panel

1

Panel

2

Panel

3

Panel

1

Panel

2

Panel

3

Panel

1

Panel

2

Panel

3

Panel

SW-OR-00002.5V

SW-OR-00002V

2m/2.5m Vertical Solar Panel 1 2 3 1 2 3 1 2 3 1 2 3



SKC-000000001 1 Panel Clamp Kit 1 1 1 1
SKC-000000002 2 Panel Clamp Kit 1 1 1 1
SKC-000000003 3 Panel Clamp Kit 1 1 1 1
SW-00000000-P1 Aluminium Profile 1m 1 1 1 1 1 1 1 1
SW-00000000-P2 Aluminium Profile 2m 1 1 1 1 1 1 1 1
SKN-C-000000CS2 Solar Controller Deltasol CS/2 1 1 1 1 1 1 1 1 1 1 1 1
SVE-0000000024 Solar Expansion Vessel 24Ltr 1 1 1 1 1 1 1 1 1 1
SVE-0000000035 Solar Expansion Vessel 35Ltr 1 1
SVE-0000000050 Solar Expansion Vessel 50Ltr
SVS-0000000000 Solar Expansion Vessel Connect 1 1 1 1 1 1
SZ-L-0D-0ERP-5 Solar Pump Station Dual 5m 1 1 1 1 1 1 1 1 1 1 1 1
SKU-0000000020 20L Pre-Mixed Solar Fluid 1 1 1 1 1 1 1 1 2 1 1 2
SVB-000000000P Solar Discharge- Plastic 1 1 1 1 1 1
OZM-0000.75NRV Thermo Mixing Valve 3/4” NRV 1 1 1 1 1 1
OZM-00000.75HP* Thermo Mixing Valve 3/4” HP * 1 1 1 1 1 1
SZ-G-0G-000004 Solar Pipe Entry Gasket Set 4” 1 1 1 1 1 1
SZ-G-0G-000000 Solar Pipe Entry Flashing 1 1 1 1 1 1
SZF-3/4-3/4-MF Solar Elbow 3/4” x 3/4” Flat Face 2 2 2 2 2 2
SZF-3/4-3/4-SM Solar Fitting 3/4” x 3/4” nip DN16 1 1 1 1 1 1

Appearance

The panel comes in a stylish, low-profile all-black finish and a profiled aluminum frame. As well as giving you the option of having the panels sitting flush in-roof with tiles or simply installed on-roof on a mounting frame.

Heat Pump Integration

By integrating solar thermal into the design of a heat pump, it is possible to offset 60% of your hot water demand per year, therefore heavily reducing the running costs of your heat pump and subsequently, the lifespan. To find out more about heat pumps, continue reading by clicking here.

Standard Kit - Solar Pipe

UK PACK COMP IE PACK COMP
Code Description 1 2 3 1 2 3

DN16 Solar Tail Pack Standard System

SKT-00000000

DN16 Solar SS Insulated Tail 0.75m

1 1 1

10m DN16 Solar Pipe Pack Standard System

SPD-16-10-0000

DN16 10m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1

15m DN16 Solar Pipe Pack Standard System

SPD-16-15-0000

DN16 15m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1

25m DN16 Solar Pipe Pack Standard System

SPD-16-25-0000

DN16 25m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1

Product Data

TECHNICAL DATA 2M 2.5M
Certification Number BBA 0192 BBA 0192
Collector type Roof-mounted collector Roof-mounted collector
Overall area [m2] 2.02 2.34
Absorber area [m2] 1.85 2.15
Aperture area [m2] 1.93 2.23
L x W x H [mm] 1.730 x 1.170 x 73 2.000 X . 1.170 X 73
Weight [kg] 31 32
Absorber capacity [L] 1.56 1.56
Housing Al-frame Al-frame
Absorption* [%] 95 95
Emission* [%] 5 5
Ø manifold [mm] 18 or 22 (¾ or 1″) 18 or 22 (¾ or 1″)
Max. operating pressure 10 bar 10 bar
Proper heat transfer medium Polypropylene glycol / water mixture Polypropylene glycol / water mixture
Approved installation angle min. 15°, max. 75° min. 15°, max. 75°
Setting Out The Roof

Code Dimensions
A 300mm
B 300mm
C 2000mm
D 1680mm
E 2420mm
F 3380mm

Connecting Solar Pipe To The Panels

If you choose to use solar pipe either in full lengths or as tails the connections must be made to the panels prior to fitting the flashing kit.

The panels are terminated in 3/4” BSP flat face male nipple as supplied as part of the kit. Following the diagram below single fitting should be tightened to the flat face of the elbow connected to the panel.
