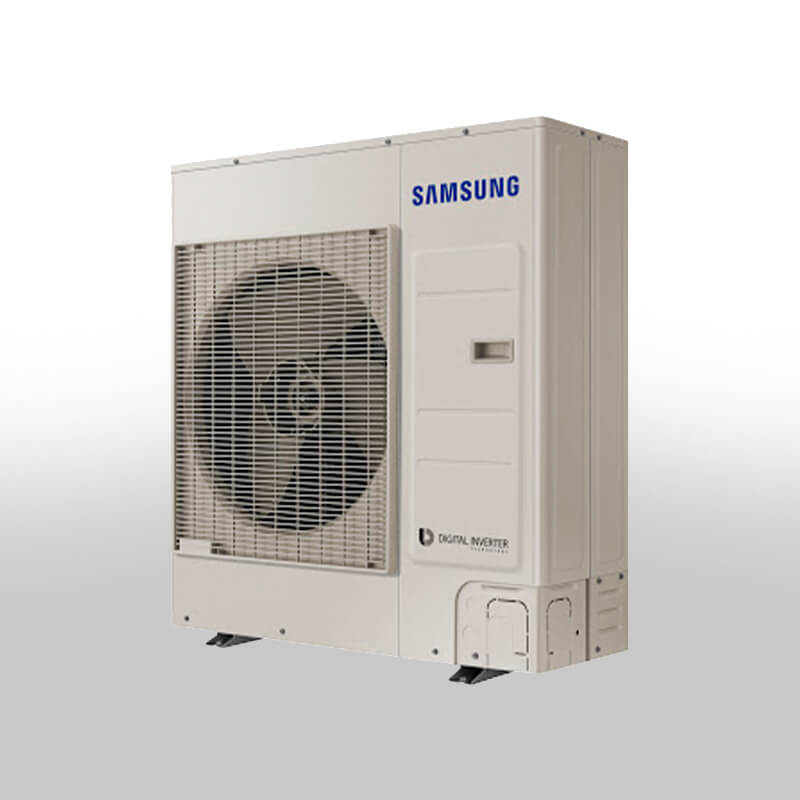

8KW R32 Air Source Heat Pump

Features & Benefits

A Joule Samsung heat pump is an energy-efficient system that uses the heat from the ambient air for heating and hot water. By using the ambient air and transferring this heat into the house through a hydronic system, such as underfloor heating, a heat pump requires less power input and offers greater power output than conventional boilers.

Solution Key Features

7-year Warranty
SCOP: Best on MCS Database – 4.85
65°C Hot Water
45dB(A) – Quietest System on the Market
5Kw Outputs
Low GWP Refrigerant – R32

Categories:

General

	Outdoor Unit				HHSM-G600005-1	HHSM-G600008-1	HHSM-G600012-1	HHSM-G600016-1
System	Operation	Nominal Capacity	Heating A7/W351/A7/W552	W	5.000/4.300	8.000/7.100	12.000/11.300	16.000/15.000
			Cooling A35/W181	W	5.000	7.500	12.000	14.000
		Power Input (Nominal)	Heating A7/W351/A7/W552	W	1.030/1.520	1.770/2.530	2.650/3.730	3.620/5.180
		Power Input (Nominal)	Cooling A35/W181	W	1.140	1.900	2.770	3.280
		COP (Nominal Heating) A7/W351/A7/W552		W/W	4,85/2,83	4,52/2,81	4,53/3,03	4,42/2,90
		EER (Nominal Cooling) A35/W181		W/W	4,39	3,95	4,33	4,27
		SCOP LWT 350c/550c		W/W	4,46/3,2	4,44/3,23	4,69/3,51	4,48/3,53
		Average Seasonal Space Heating Eff.Class*		–	A+++/A++	A+++/A++	A+++/A++	A+++/A++
		Current	MCA	A	16,00	22,00	28,00	32,00
			MFA	A	20,00	27,50	35,00	40,00
		Water Flow Rate	Min	L/MIN	7,00	7,00	12,00	12,00
			Max	L/MIN	48,00	48,00	58,00	58,00
		Leaving Water Temp	Heating	0C	15-65	15-65	15-65	15-65
			Cooling	0C	5-25	5-25	5-25	5-25
	Function	Smart Grid Ready		–	Yes	Yes	Yes	Yes
		PV Enabled		–	Yes	Yes	Yes	Yes
		2-Zone Control		–	Yes	Yes	Yes	Yes
Indoor Compact Unit	Power Supply			0,#,V,Hz	220-240V, 50Hz, 1	220-240V, 50Hz, 1	220-240V, 50Hz, 1	220-240V, 50Hz, 1
	Water Tank Volume			Litres	180/230	180/230	180/230	180/230
	Declared Load Profile			L/XL
	Energy Efficiency Classes			–	A	A	A	A
	Sound	Sound Pressure	Heating/ Cooling Std	dB(A)
		Sound Power	Heating Std	dB(A)
	Dimensions	Net Weight		KG	85/90	85/90	85/90	85/90
		Net Dimensions (WxHxD)		MM	1900 x 595 x 625	1900 x 595 x 625	1900 x 595 x 625	1900 x 595 x 625
Outdoor Unit	Power Supply			0,#,V,Hz	10,220-240V,50Hz	10,220-240V,50Hz	10,220-240V,50Hz	10,220-240V,50Hz
	Compressor	Type		–	BLDC Twin Rotary	BLDC Twin Rotary	BLDC Twin Rotary	BLDC Twin Rotary
	Base Heater			–	—	Yes	Yes	Yes
	Sound	Sound	Heating Std	dB(A)	45	48	50	52
		Pressure	Cooling Std	dB(A)	45	48	50	54
		Sound	Heating Std	dB(A)	61	63	64	66
		Power	Cooling Std	dB(A)	62	64	65	68
	Dimensions	Net Weight		KG	58.5	76	110	110
		Net Dimensions (WxHxD)		MM	880 x 798 x 310	940 x 998 x 330	940 x 1420 x 330	940 x 1420 x 330
	Refrigerant	Type		–	R32	R32	R32	R32
		Factory Charging		tC02e	0,68	0,78	1,49	1,49
				KG	1,00	1,15	2,20	2,20
	Piping	Water Pipe	Inlet/Outlet	0,mm	28/28	28/28	28/28	28/28
		Water Pipe (DHW)	Inlet/Outlet	0,mm	22/22	22/22	22/22	22/22
		Ambient Temperature	Heating	0C	-25-35	-25-35	-25-35	-25-35
			Cooling	0C	10-46	10-46	10-46	10-46
			DHW	0C	-25-43	-25-43	-25-43	-25-43

Videos

8KW R32 Air Source Heat Pump - Videos

The Complete Solutions

Downloads

Setting Out

Condensate Management

1. Prepare a water drainage channel around the foundation, to drain waste water from around the unit.
2. If the water drainage of the unit is not easy, please build up the unit on a foundation of concrete blocks, etc. (the height of the foundation should be a maximum of 150mm).
3. If you install the unit on a frame, please install a water-proof plate within 150mm of the underside of the unit in order to prevent the invasion of water from the lower direction.
4. When installing the unit in a place frequently exposed to snow, pay special attention to elevate the foundation as high as possible.
5. If you install the unit on a building frame, please install a waterproof plate (field supply) within 150mm of the underside of the unit in order to avoid the drain water dripping.

Locating the Outdoor Unit

Electrical

Outdoor Cable Specification

OUTDOOR UNIT	RATED		VOLTAGE RANGE		MCA	MFA
OUTDOOR UNIT	HZ	VOLTS	MIN	MAX	MIN CIRCUIT AMPS	MAX FUSE AMPS
HHSM-G600005-1	50	220-240	198	264	16A	20A
HHSM-G600008-1	50	220-240	198	264	22A	27.5A
HHSM-G6000012-1	50	220-240	198	264	24A	35A
HHSM-G6000016-1	50	220-240	198	264	32A	40A

– The power cable is not supplied with Air to water heat pump.
– Supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed flexible cord (Code designation IEC:60245 IEC 57 / CENELEC:H05RN-F).
– This Equipment complies with IEC 61000-3-12.
– For the power Cable, use the grade H07RN-F or H05RN-F materials.

Wiring Diagram of Power Cable

You should connect the power cable to the power cable terminal and fasten it with a clamp. To protect the product from water and possible shock, you should keep the power cable and the connection cord of the control kit and outdoor units within ducts. (with appropriate IP rating and material selection for your application)
Ensure that the main supply connection is made through a switch that disconnects all poles, with a contact gap of a least 3 mm.
Devices disconnected from the power supply should be completely disconnected in the condition of the overvoltage category.
Keep distances of 50mm or more between power cable and communication cable.

If there is a risk of disturbance to the communication cable, a screened cable must be used.

Wiring Diagram of Communication Cable – Single Phase

Communication Cable Specifications
If there is a risk of disturbance to the communication cable, a screened cable must be used.

Mechanical

Piping Work

Flow sensor
Supplied with the Pre Plumbed cylinder is a Flow Sensor and a Flow Meter. The Flow Sensor should be mounted within 2 M of the Control Kit. This lead can be extended, it is a 4 core cable, if you do extend ensure that the cores are not crossed. The sensor must be located indoors as it is only splashproof. Ideally, the Flow sensor will be mounted horizontally in the return line to the Outdoor unit. The minimum straight pipe on the inlet and outlet of the flow sensor must be adhered to, as detailed in the diagram The flow sensor plugs directly onto the MIM unit on Connections CSN 057.

Pressure Relief Valve
The outdoor unit does not have a pressure relief valve incorporated. The installer MUST ensure the system is protected from over-pressurisation. The valve shall prevent abnormal water pressure from damaging the system by opening at a maximum pressure setting of 3.0 bar.

Filter/Strainer
Installation of the filter/ strainer is essential to protect the outdoor unit from system debris.
The filter/ strainer must be cleaned regularly to maintain the minimum system flow rate.

Piping Insulation
Pipe or duct insulation should comply with BS 5422:2009. Alternatively, insulation of a thickness that provides reduction of heat loss equivilant to material having a thermal conductivity of 0.035 W/mK at 40 °c and thickness equal to the diameter of the pipe (or 40mm, whichever is smaller) may be used.

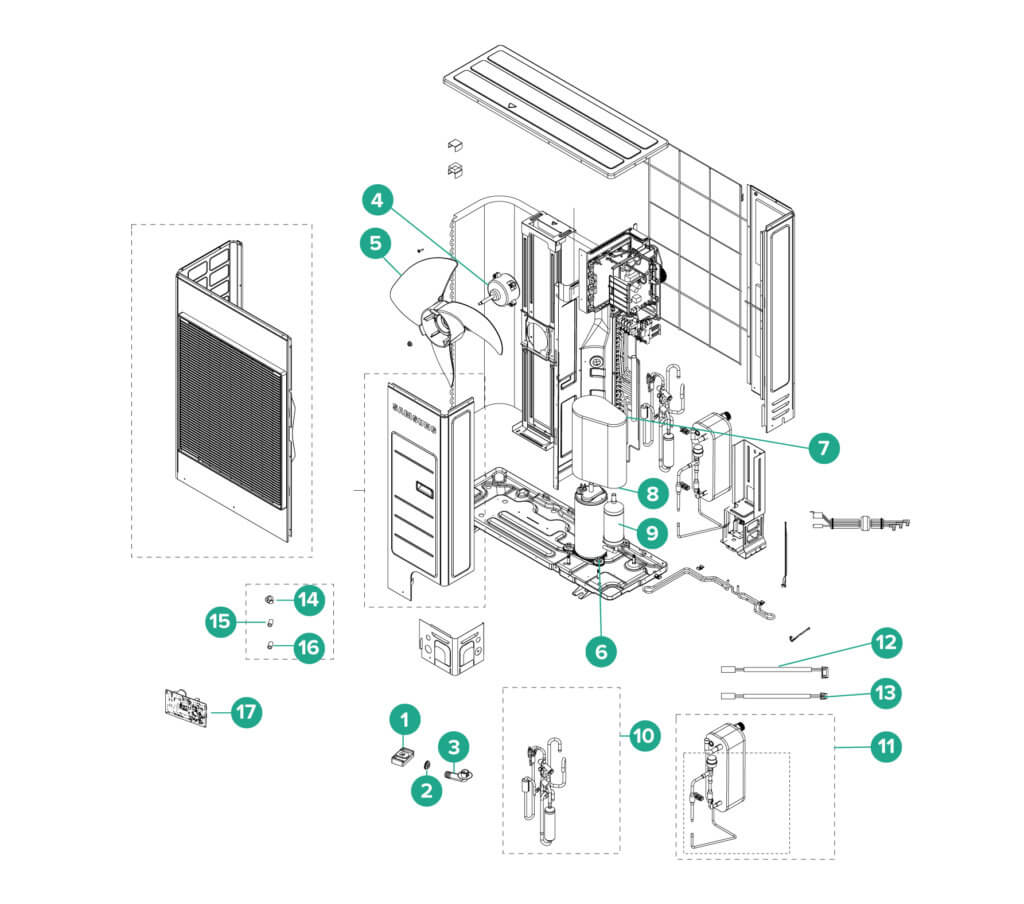

SPARE PARTS

Ref No;	Item No;	Description
1	DB73-20134A	RUBBER-LEG; V2-MD,NBR,10,BLACK
2	DB63-10355C	CAP-DRAIN; CR,T2,BLACK,ASH-1814ER
3	DB67-00806A	DRAIN-PLUG OUT; UH140GAV,PE,NATURAL
4	DB31-00579A	MOTOR FAN; 125W,DC310V,CLASS E
5	DB94-04381A	ASSY FAN PROPELLER; DVM S ECO,520
6	DB60-30028A	NUT-FLANGE; HWH,M8,ZPC(WHT),SWRCH18A,P1.2
7	DB63-02953A	CLOTH-COMP TOP; GLOBAL 4WAY,EVAR/FELT,T10
8	DB63-02954C	CLOTH-COMP SIDE; RC090MHXEA,EVAR/FELT,T10
9	UB8TN8265FJWSG	RCP,COMP,RCP,F,R32;
10	DB96-21400B	ASSY TUBE 4WAY; AE090RXYDEG,R32, UB1
11	DB96-21406B	ASSY TUBE COND; AE090RXYDEG,R32, UB1
12	DB32-00215A	SENSOR TEMP; 103AT,EVA_IN,800
13	DB32-00216A	SENSOR TEMP; 103AT,WATER_INOUT,700
14	DB62-11213A	INSULATION-HOLDER SENSOR; RC090MHXEA,FOAM
15	DB62-04154B	INSULATION-HOLDER WIRE; PP FOAM+PE FOAM
16	DB62-03808C	INSULATION-HOLDER SENSOR; PP FOAM+PE FOAM
17	DB82-04392A	A/S ASSY-EEPROM; AE090RXYDEG,MONO
