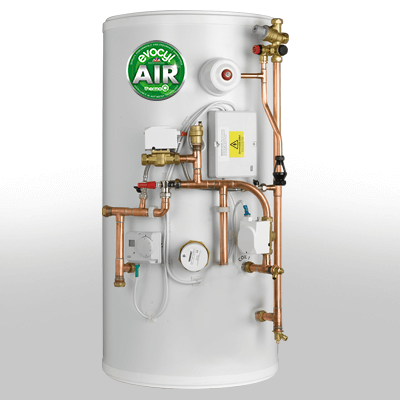

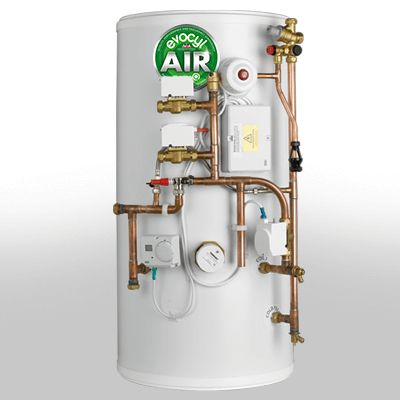

Therma Q Evocyl Air SystemReady Pre Plumb

Features & Benefits

Designed with the new build housing market in mind, the Evocyl System Boiler provides a system boiler alternative to the standard Pre-Plumbed, whilst still offering the pre-plumbed benefits to reduce installation time and a standardised configuration across multiple dwelling sites.

Available in 6 sizes ranging from 120 litres to 300 litres, the indirect cylinder also benefits from the key features within the Evocyl range, with a wide base to improve stability, quality branded components with a white goods finish to improve the appearance and a 25 year warranty, promising you peace of mind.

Categories: Therma Q Evocyl Air Pre Plumb

General

No2 CODE	ITEM NO	ZONE VALVES	CAP.	WEIGHT EMPTY	WEIGHT FULL	WATER VOL.	ERP RATING	REHEAT TIME INDIRECT	STANDING LOSS	STANDING LOSS	PRIMARY COIL RATING
		No.	Litre	KG	KG	L		MINS	W	kWh/24h	KW
AGSBS0150	TTMI-S0150-L1B	1	150	38	172	150	B	25.3	50	1.26	12.45
AGSBT0150	TTMI-S0150-L2B	2	150	38	172	150	B	25.3	50	1.26	12.45
AGSBS0180	TTMI-S0180-L1C	1	180	42	207	180	B	26.16	55	1.4	14.27
AGSBT0180	TTMI-S0180-L2C	2	180	42	207	180	B	26.16	55	1.4	14.27
AGSBS0210	TTMI-S0210-L1C	1	210	45	232	210	B	29.06	58	1.48	14.91
AGSBT0210	TTMI-S0210-L2C	2	210	45	232	210	B	29.06	58	1.48	14.91
AGSBS0250	TTMI-S0250-L1C	1	250	51	281	250	C	32.88	60	1.76	17.7
AGSBT0250	TTMI-S0250-L2C	2	250	51	281	250	C	32.88	60	1.76	17.7
AGSBT0300	TTMI-S0300-L2C	2	300	60	319	300	C	37.8	75	2.03	19.72

Videos

Downloads

dims

No2 CODE	ITEM NO	HEIGHT	DIAMETER
	(mm)	A	B
AGSBS0150	TTMI-S0150-L1B	1100	545
AGSBT0150	TTMI-S0150-L2B	1100	545
AGSBS0180	TTMI-S0180-L1C	1280	545
AGSBT0180	TTMI-S0180-L2C	1280	545
AGSBS0210	TTMI-S0210-L1C	1470	545
AGSBT0210	TTMI-S0210-L2C	1470	545
AGSBS0250	TTMI-S0250-L1C	1720	545
AGSBT0250	TTMI-S0250-L2C	1720	545
AGSBT0300	TTMI-S0300-L2C	1986	545

Mechanical

Electrical

KIT CONTENTS

Item No.	Description	Quantity
TZM-I-PPM022MM	Two port motorised valve	2
TZW-WC00000000	PCB wiring centre	1
TZC-D-ESI-0000	ESI Smart dual cylinder thermostat	1
TZ-V-BMANIFOLD	Auto bypass	1
TZ-MANUALV-0.5	Auto air vent	1
TZG-P-0-000AC6	Inlet group control set C/W Pressure relief valve	1
TZ9-7.0-0000.5	Temperature and pressure relief valve	1
TV-P0-0000012L	120-210ltr – 12ltr Exp	1
TV-P0-0000019L	250 ltr – 19ltr Exp	1
TV-P0-0000019L	300ltr – 24ltr Exp	1
UZT-ESI0000002	ESI 2 Channel programmer	1
TZC-5-ESILPROG	ESI Room thermostat	1
TI-I-Q-14-3-01	3kW 1 Phase Immersion element	1
TZU-000015X022	15mm – 22mm Tundish	1
TZ9-TPV-00-COV	Temperature and pressure relief valve cover	1
